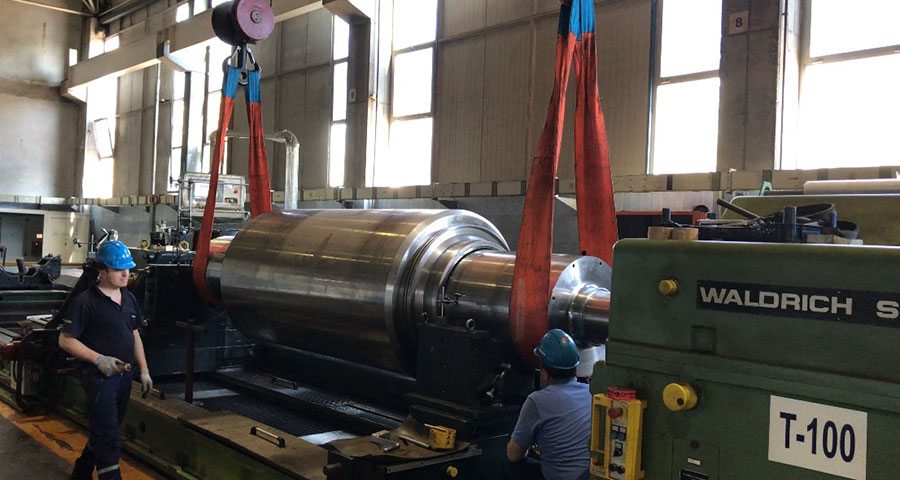

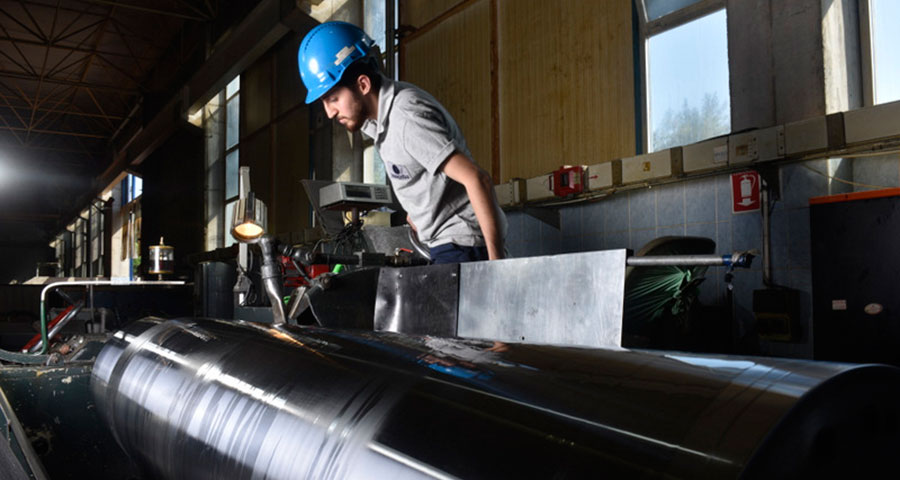

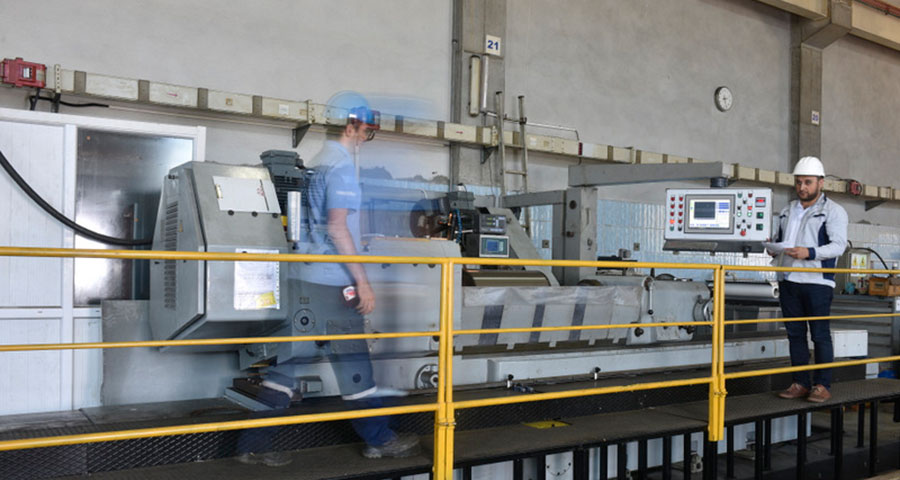

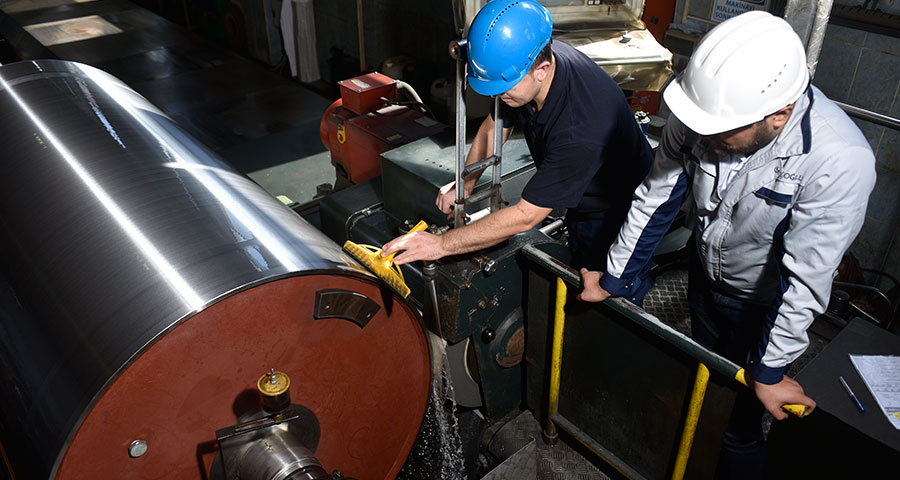

Cylindrical Grinding

Grinding is a metal shaving process, which uses a tool made of abrasive materials and irregularly shaped cutting edges.

Grinding is an essential process that further improves surface quality after lathing, milling or other machining operations.

Hard chrome plated or not plated rolls which are used as manufacturing rolls, should be grinded in order to match the dimension tolerances. High quality production can only be accomplished using rolls that meet superior dimensional tolerances.

In addition, surface imperfections such as cracks, cavities, porosity, fakes and rust must be removed from roll surfaces prior to the plating process in order to achieve superior quality, durable hard chrome plating.

With its technical capacity, knowledge and experience, the quality and environmental management systems, Tarakçıoğlu is the leader of Cylindrical Grinding in Turkey.

Silindirik Taşlama

Technical Details

Industry

Steel, Aluminyum, Plastic / Packing, Rubber,
Machinery, Food, Paper / Printing, Textile,
Wood Working, Power Plants, Automotive,
Home Appliances, Glass, Leather, Construction,
Shipyard, Chemical, Defense

Features

  • Convex & Concave Cylindrical Grinding.
  • Concentricity & Cylindricity < 0,005 mm.

Dimensions

  • Ø 2.500 mm x   8.000 mm,
    Ø 2.000 mm x 12.000 mm,
  • 60.000 kg.

Material

Chrome Plated Surfaces,
High Temperature Steel,
Stainless Steel,
Quenched & Tempered Steel,
Chilled & Indefinite Cast Iron,
Copper.

Parts

  • Back Up-Work-Bridle-Deflector & Looper Rolls,
  • Calenders,
  • Heat Transfer-Cooling & Crushing Rolls,
  • Pistons, Guide Rolls & Hydraulic Cylinders,
  • Cracking-Flaking and Refiner Rolls,
  • Press-Drying-Transfer-Breast & Blinded Hole Rolls,
  • Coating / Smoothing Rolls & Printing Cylinders,
  • Bearing Pillows of Rollers, Turbines & Rotors.
